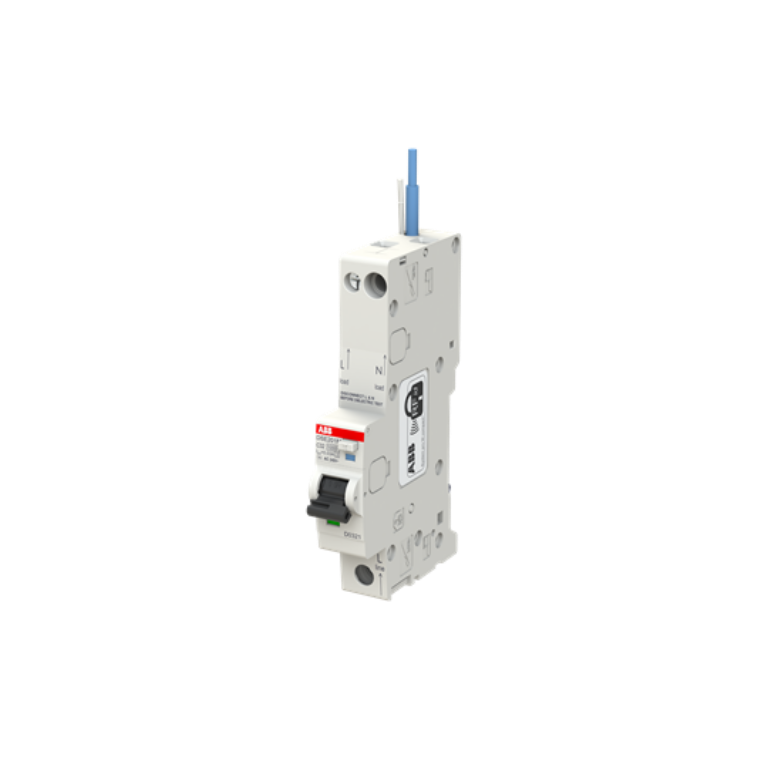

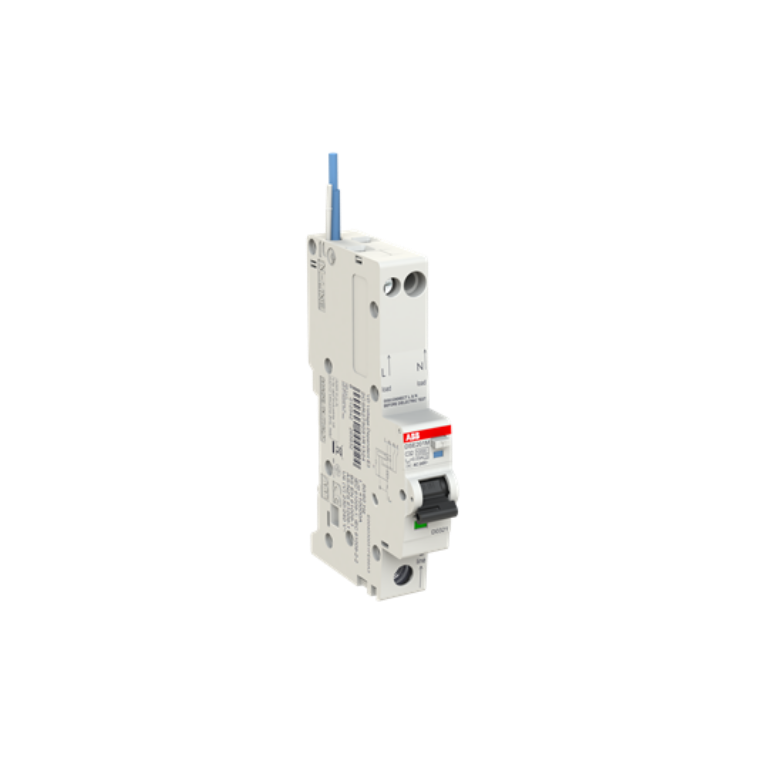

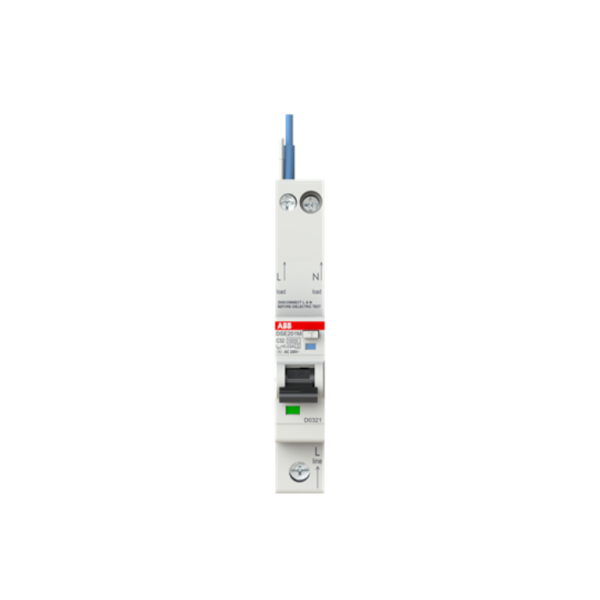

RCBO, DSE201M SPN Class AC Type C
Supplier: ABB Limited
Quantity in Stock at Watford:
Quantity in Stock at Colnbrook:
Additional information
| Product | RCBO |
|---|---|
| Qualifier | Low Voltage |
| Pole Configuration | Double Pole (2P) |
| Mounting | DIN Rail |
| Ingress Protection | IP40 |
| Trip Type | Type C |
| Short Circuit Rating | 10 kA |
| Sensitivity | 30 mA |
| Cable Capacity | 16 mm2 |
| Height | 115 mm |
| Width | 17.6 mm |
| Depth | 68.9 mm |
| Current Rating | 32 A |
| Voltage | 230 | 240 V |
| Standards | IEC/EN 60068 IEC 61009/60947/61439 BS EN 61009/61439 AS/NZS 61009 |
| Unit Weight | 0.2 kg |
| Supplier | ABB Limited |
