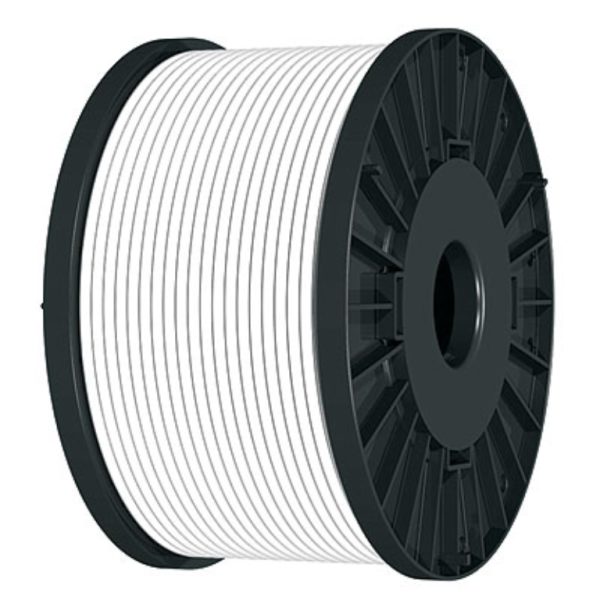

Cable, 3 Core & Earth Fire Resistant, Standard 60 100m Reel
Supplier: Ventcroft Ltd
Standard 60 100m Reel
£
Quantity in Stock at Watford:
Quantity in Stock at Colnbrook:
Standard 60 100m Reel
Additional information
| Product | Cable |
|---|---|
| Type | Fire Protection |
| Qualifier | Electrical |
| Number of Cores | 3 |
| Earth Core | Y |
| Conductor Material | Copper |
| Insulation Type | Silicone Rubber |
| Fire Resistant | Y |
| Note | 100m Reel |
| Minimum Bending Radius | 52.5mm |
| Screen Material | Aluminium Foil |
| Outer Sheath Colour | White |
| Overall Diameter (mm) | 9 mm |
| Conductor Size | 1.5 mm2 |
| Minimum Temperature Rating | -40 Degrees C |
| Maximum Temperature Rating | 90 Degrees C |
| Voltage Rating | 300/500 V |
| CE Approved | Y |
| Conforming Standard | BS 5266-1/5839-8/5839-9/5839-1/7629-1/6387 BS EN 50200/50267-2-1 IS 3217/3218 |
| Smoke Emission Standard | BS EN 61034-2 |
| Warranty | 10 Years |
| Unit Weight | 12.9 kg |
| Supplier | Ventcroft Ltd |
