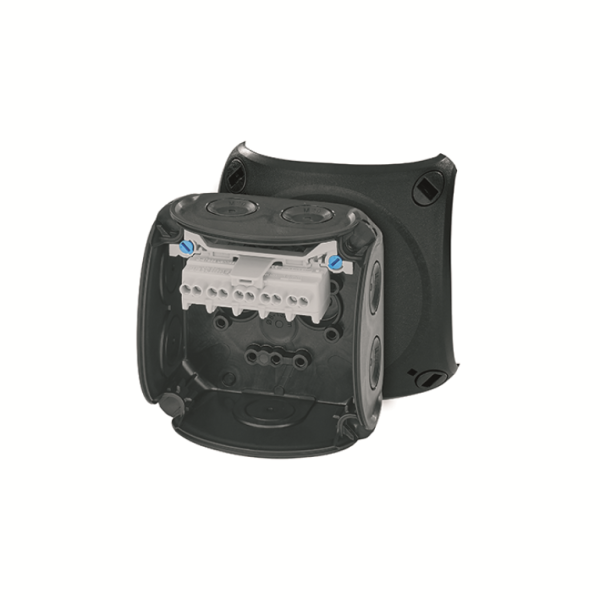

Box, ENYCASE DK Enclosure, 1.5-2.5mm sq Terminal
Supplier: Hensel Electric UK Ltd
1.5-2.5mm sq Terminal
Quantity in Stock at Watford:
Quantity in Stock at Colnbrook:
1.5-2.5mm sq Terminal
Additional information
| Product | Box |
|---|---|
| Type | Adaptable |
| Description | Suitable for indoor installation and outdoor installation protected against weather influences |
| Maximum Rated Current | 20 A |
| Number of Poles | 5P |
| Ingress Protection | IP66 |
| Impact Strength | IK07 |
| Cross Section Cable | 8 x 0.75 mm² 6 x 1.5 mm² 4 x 2.5 mm² 2 x 4 mm² mm2 |
| Rated Operational Voltage | 690 V |
| Cable Outlet | 1 bottom |
| Suitable for | Suitable for indoor and outdoor installation protected against weather influences |
| Mounting | Surface |
| c/w Door/Lid | Y |
| Number of Doors/Lids | 1 |
| Door/Lid Type | Plain |
| Cover Material | Polypropylene |
| Material | Polypropylene PP |
| Colour | Graphite Black RAL 9011 |
| Length | 93 mm |
| Width | 93 mm |
| Depth | 62 mm |
| Fire Protection Rating | flame-retardant self-extinguishing |
| Operating Temperature Range | -25/+40 Degrees C |
| CE Approved | N |
| Standards | IEC 60670-22 |
| Unit Weight | 0.128 kg |
| Supplier | Hensel Electric UK Ltd |
